Sway Bar

Your Professional Sway Bar Manufacturer!



Qingdao Everlasting Auto Parts Co., Ltd. was established in 2018, covering an area of 10,000 square meters and employing 100 people, including 20 engineers. We are a direct manufacturer of suspension leaf springs, guide arms, coil springs and stabilizer bars.


First 12 Last 1/2




Why Choose Us

Sales Market:
We provide leaf spring products to well-known OEM truck manufacturers such as SINOTRUK and T-KING. Our products have been successfully exported to many countries and regions such as the United States, Russia, South Korea, Vietnam and the United Arab Emirates.

Production Capacity:

Our annual output of leaf springs is 30,000 tons, coil springs is 200,000 pieces, and stabilizer bars is 100,000 pieces.

OEM Service:

We can customize leaf springs, coil springs and stabilizer bar kits according to drawings or samples provided by customers.

Quality Assurance:

We promise to provide a 12-month quality assurance service for the products we provide.

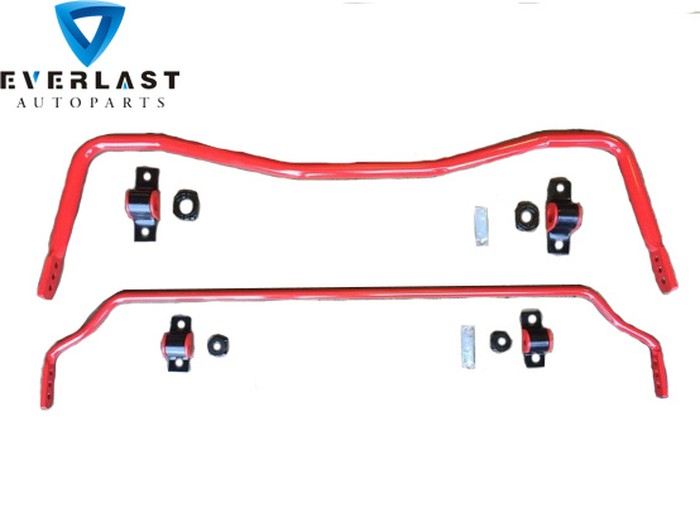

Sway Bars For Sport And Racing Cars 13 36500 2016



Custom Sway Bar

We offer custom sway bar manufacturing solutions to meet your needs. Main customizable options:
● Material
● Diameter size
● Shape design
● Surface treatment
● Connection method
● Installation position
● Color





Sway Bar Specification





Length

Normal

Thread size

Normal

Max Pipe Diameter

Normal

Height

Normal

Sway Bar Diameter

30mm

Material

4140 CrMo spring steel/42CrMo



Types Of Sway Bars


Solid sway bars:
These are the most basic type of sway bar and are typically made from solid steel. They are durable and inexpensive to manufacture, but they can be heavy and may transmit more noise and vibration to the vehicle's cabin.



Hollow sway bars:
These are similar to solid sway bars but hollowed out in the center to reduce weight. They offer a good balance of strength and weight but can be more expensive to manufacture than solid sway bars.



Adjustable sway bars:
These have a mechanism that allows the stiffness of the torsion spring to be adjusted. This allows the driver to fine-tune the sway bar for different driving conditions and styles. Adjustable sway bars are more expensive than solid or hollow, but they offer the most flexibility and performance.



Tubular sway bars:
These are similar to hollow sway bars, but they are made from a tube of steel or aluminum. They are lightweight and robust but can be more expensive than other types of sway bars.



Split sway bars:
These sway bars are similar to solid sway bars, but they have a split in the middle. This allows the sway bar to be installed without removing the entire suspension system. They are less common than other types of sway bars.

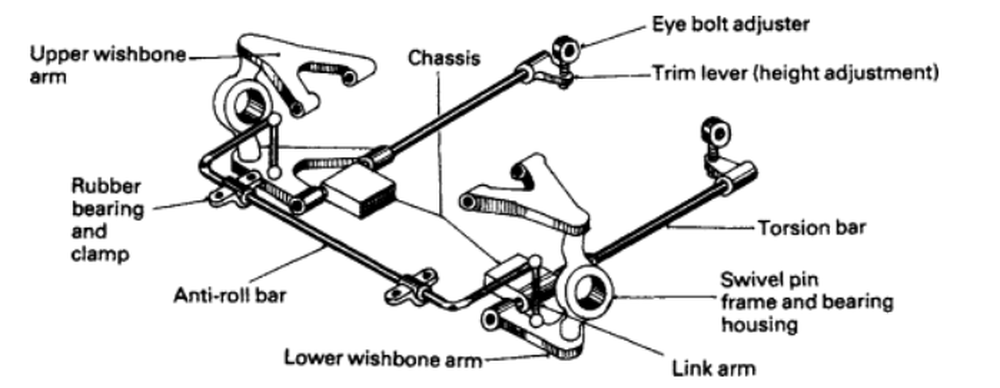

Sway Bar Structure





productcate-699-271





Sway Bar Setup





PARAMETER

TO INCREASE UNDERSTEER

TO INCREASE OVERSTEER

Front Tire Pressure

Lower

Higher

Rear Tire Pressure

Higher

Lower

Front Tire Width

Smaller

Larger

Rear Tire Width

Larger

Smaller

Front Camber

More Positive

More Negative

Rear Camber

More Negative

More Positive

Front Springs

Stiffer

Softer

Rear Springs

Softer

Stiffer

Front Sway Bar

Stiffer

Softer

Rear Sway Bar

Softer

Stiffer



The Sway Bar Manufacturing Process



01


Design Phase

• 3D CMM Scanning of samples
• CAD (Computer-Aided Design) software is used to draft and optimize the sway bar design.
• The design is optimized for the size of the vehicle and the number of bends.


02


Material Selection

We only use high-strength, resilient materials that withstand the rigorous demands of automotive applications.


03


Manufacturing

• The bar is cut to the proper length for the application and bent to the correct shape using CNC benders.
• Ends are manufactured by forging the stock material into shape. Alternatively, welded ends can be specified for more unique applications.
• Where needed sway bars are heat-treated or stress-relieved for improved durability.

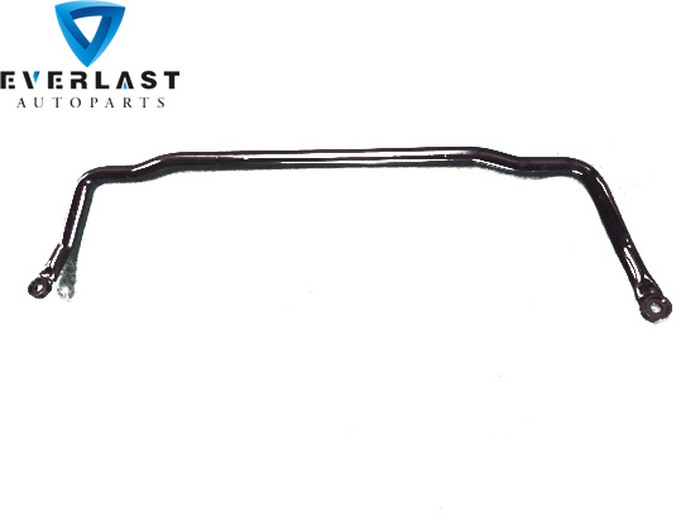

Sway Bars For Sport And Racing Cars Anti Roll Bar Kit 240





Packaging and Shipping





Packaging

Neutral package,Client requirements

Transportation

Air transport, sea transport, road transport, rail transport




FAQ


Q: What does a sway bar do?

A: Sway bars are part of a car's suspension system. Their purpose is to try to keep the car's body from "rolling" in a sharp turn.

Q: Does sway bar affect ride quality?

A: A sway bar tries to keep the car's body flat by moving force from one side of the body to another. If you have too much sway bar, you tend to lose independence between the suspension members on both sides of the car.

Q: Can I drive without a sway bar?

A: If you don't have a sway bar, you tend to have a lot of trouble with body roll in a turn.

Q: How does a sway bar work?

A: A sway bar stabilizes tire movements by fastening both ends of the axle, where the wheels are also positioned, preventing a vehicle from rolling over. Because of centrifugal force, the car's weight transfers outside the turn as the car steers to a corner.

We're known as one of the most professional sway bar manufacturers in China. Please feel free to wholesale high quality sway bar made in China here from our factory. For customized service, contact us now.
